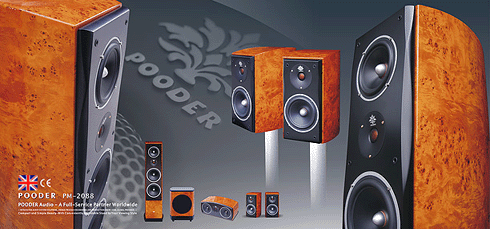

 모델명 : PM-2088 |
|
 |
|
| 세부사항 |
|
| 제품 |
항 목 |
제 품 사 양 |
PM-2088
Front floor |
Model No |
PM-2088 (Front floor) |
| Description |
3Way |
| Drive Unit |
W/F 2 X 8” |
| Mid Unit |
1 X 6.5” |
| (Silk Dome) T/W |
1 X 1” |
| Magnet Shielded |
X |
| Frequency Response |
45Hz ~ 22KHz(+/-3) |
| Maximum Output SPL |
90dB |
| Suggested Input(Nor/Max) |
150/250W |
| Norminal Impedance |
8 ohm |
| Enclosure Finished |
Black/Yellow |
| Net Weight |
38 Kg / PCS |
| Dimension(WxHxD) |
220X11800X430mm |
PM-2088
Rear |
Model No |
PM-2088 (Rear) |
| Description |
2Way |
| (Silk Dome) T/W |
1 X 1” |
| Magnet Shielded |
X |
| Frequency Response |
45Hz ~ 22KHz(+/-3) |
| Maximum Output SPL |
88dB |
| Suggested Input(Nor/Max) |
100/180W |
| Norminal Impedance |
8 ohm |
| Enclosure Finished |
Black/Yellow |
| Net Weight |
13 Kg / PCS |
| Dimension(WxHxD) |
220X600X320mm |
PM-2088
CENTER |
Model No |
PM-2088 (center) |
| Description |
2Way |
| Drive Unit |
W/F 2 X 6.5” |
| (Silk Dome) T/W |
1 X 1” |
| Magnet Shielded |
O |
| Frequency Response |
55Hz ~ 35KHz(+/-3) |
| Maximum Output SPL |
88dB |
| Suggested Input(Nor/Max) |
100/200W |
| Norminal Impedance |
8 ohm |
| Enclosure Finished |
Black/Yellow |
| Net Weight |
15 Kg / PCS |
| Dimension(WxHxD) |
650X300X250mm |
PM-2088
Sub Woofer |
Model No |
PM-2088 (Sub Woofer) |
| Description |
1Way |
| Drive Unit |
W/F 2 X 10” |
| Magnet Shielded |
X |
| Frequency Response |
55Hz ~ 180KHz(+/-3) |
| Suggested Input(Nor/Max) |
100/120W |
| Norminal Impedance |
8 ohm |
| Enclosure Finished |
Black/Yellow |
| Net Weight |
23 Kg / PCS |
| Demension(WxHxD) |
450X600X450mm |
|
| |
|
